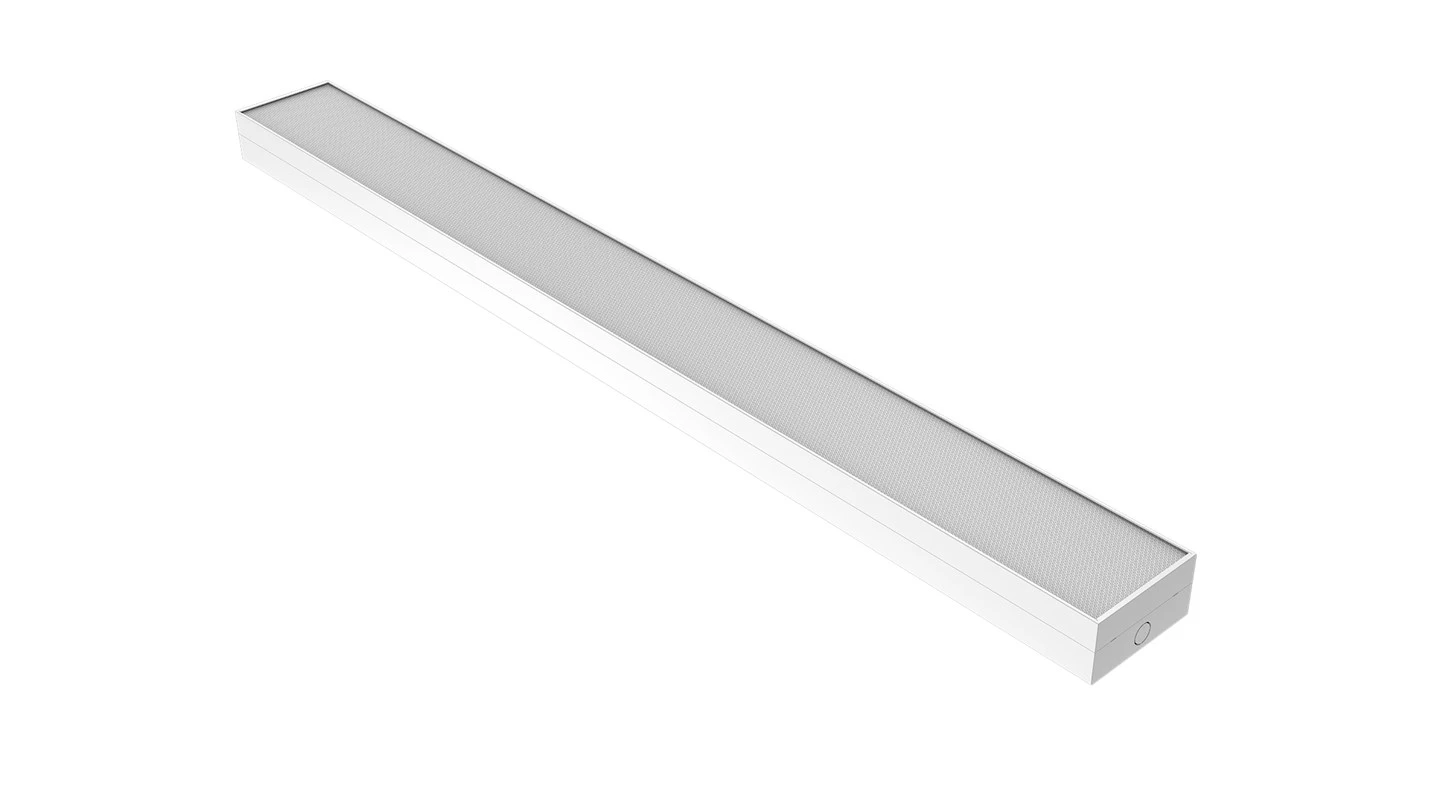

Kingston UGR Batten Light

Kingston batten -2

Kingston batten -3

Kingston batten -4

Kingston batten -5

Deskrizzjoni:

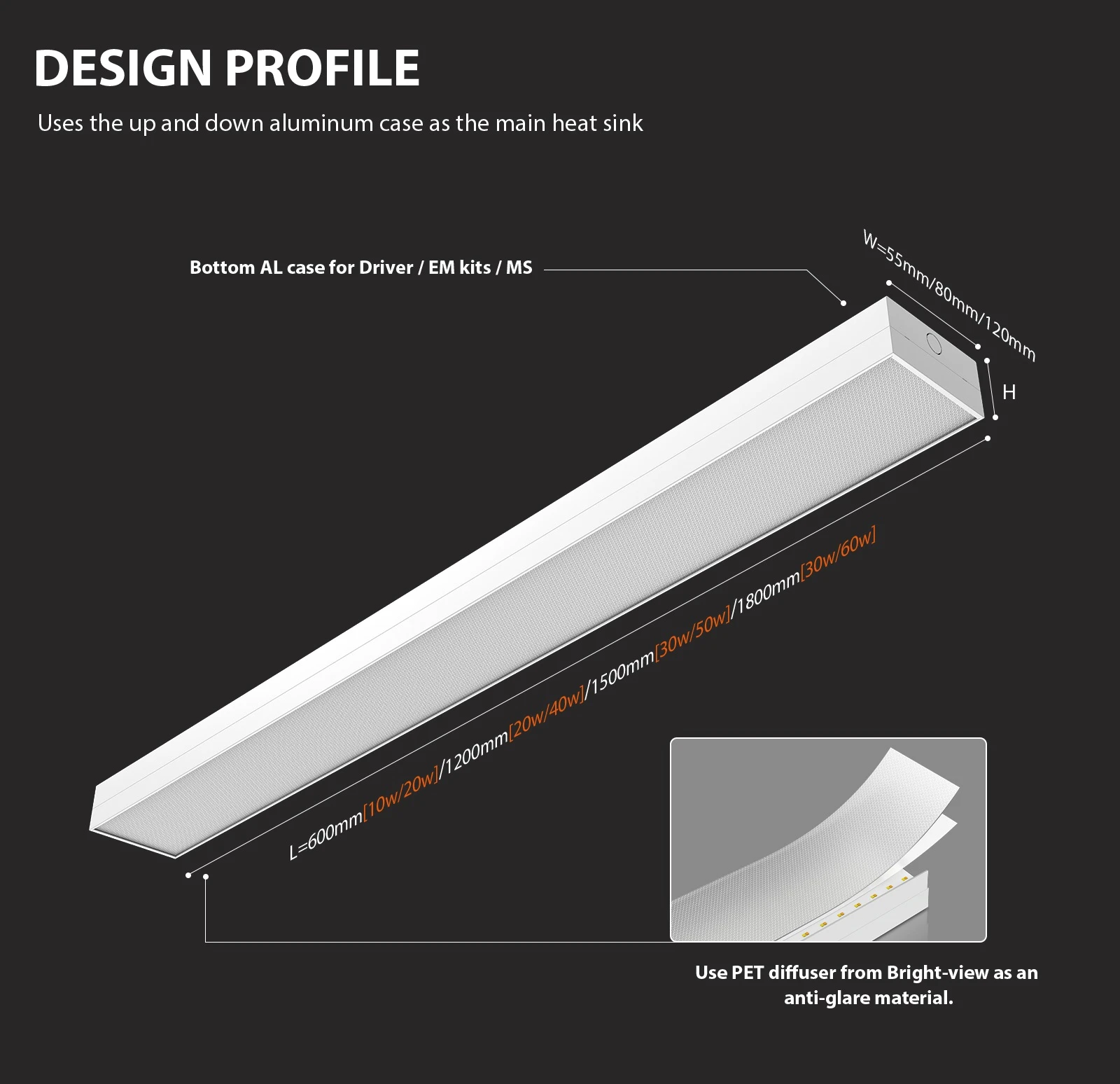

Kingston Batten juża l-kaxxa tal-aluminju 'l fuq u' l isfel bħala s-sink tas-sħana prinċipali, li mhux biss tassigura d-dissipazzjoni tajba tat-tisħin, iżda wkoll tipprovdi garanzija ta 'żmien twil.
Kingston Batten juża diffużur tal-PET minn Bright-vista bħala materjal kontra-d-dija, li mhux biss jiggarantixxi l-UGR<19, but also guarantees the beam angle of these range of batten series. The wattage and CCT switch on the driver as a standard for the kingston battens. It helps customers reduce inventory while also enabling fast delivery.

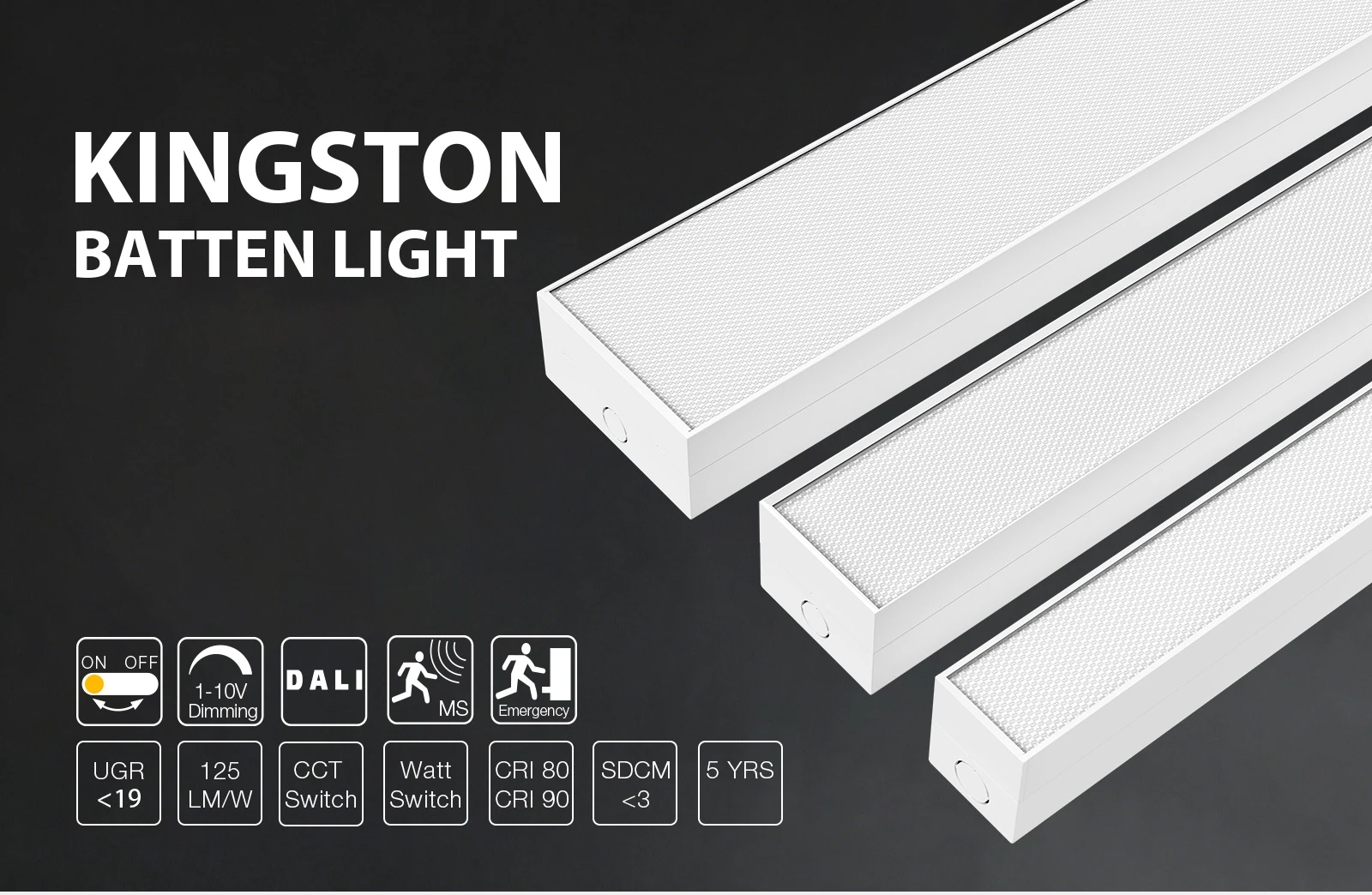

Karatteristika:

>UGR<19 with brightview film

>Iswiċċ tas-CCT fuq is-sewwieq LED

>55mm|80mm|120mm wisgħat disponibbli

>Ra80 jew Ra90, SDCM<3

>Toqba besa tat-tarf jew ta 'wara għad-dħul tal-kejbil

>Diversi ta 'funzjonijiet differenti bħala għażliet

>2ft / 4ft / 5ft / 6ft dimensjoni disponibbli

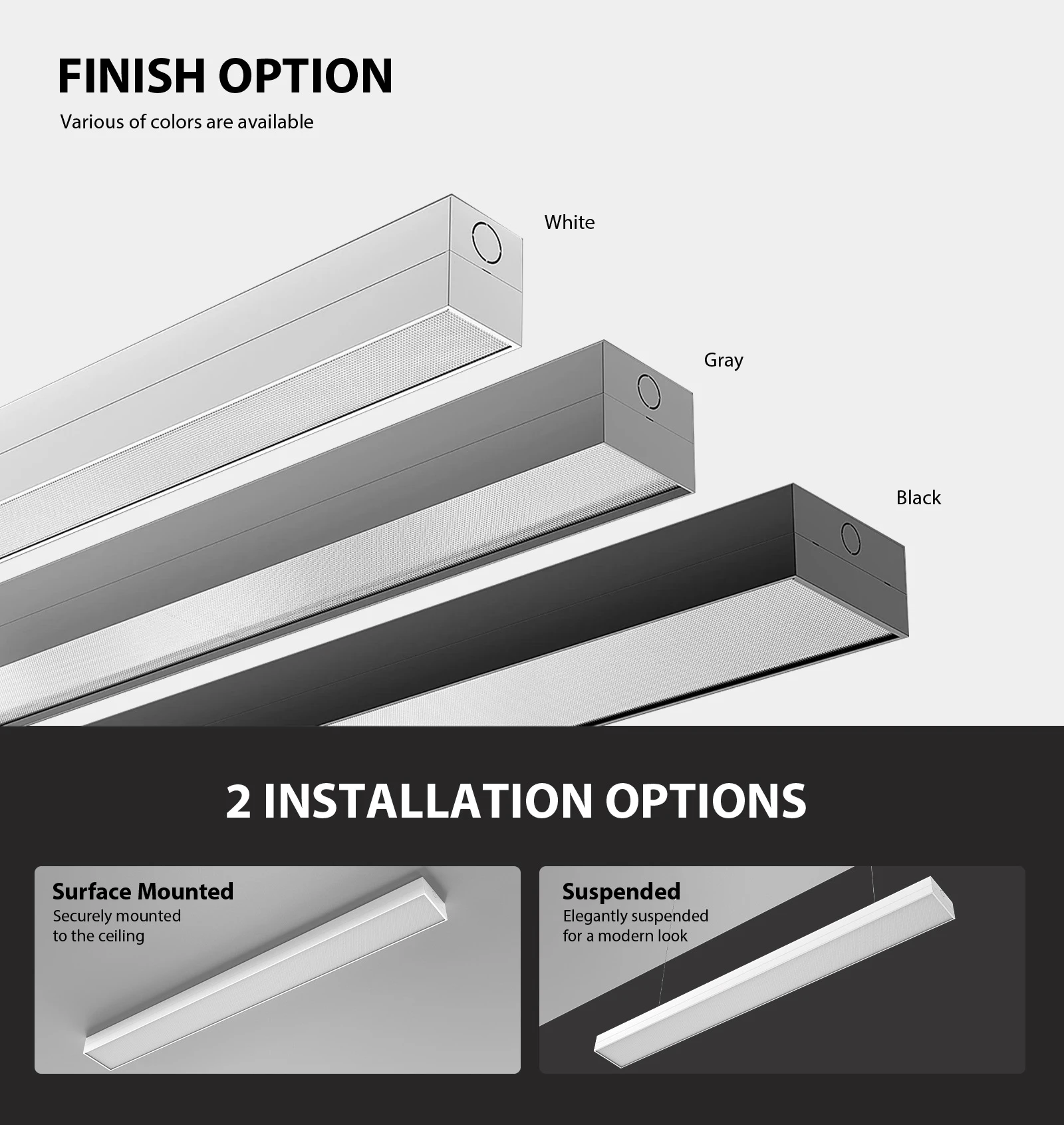

>Recessed / Immuntar tal-wiċċ / Installazzjoni ta 'sospensjoni

>5 snin ta 'garanzija

Ibgħat l-inkjesta

It-tniżżil

Deskrizzjoni

Parametri tekniċi

INTRODUZZJONI:

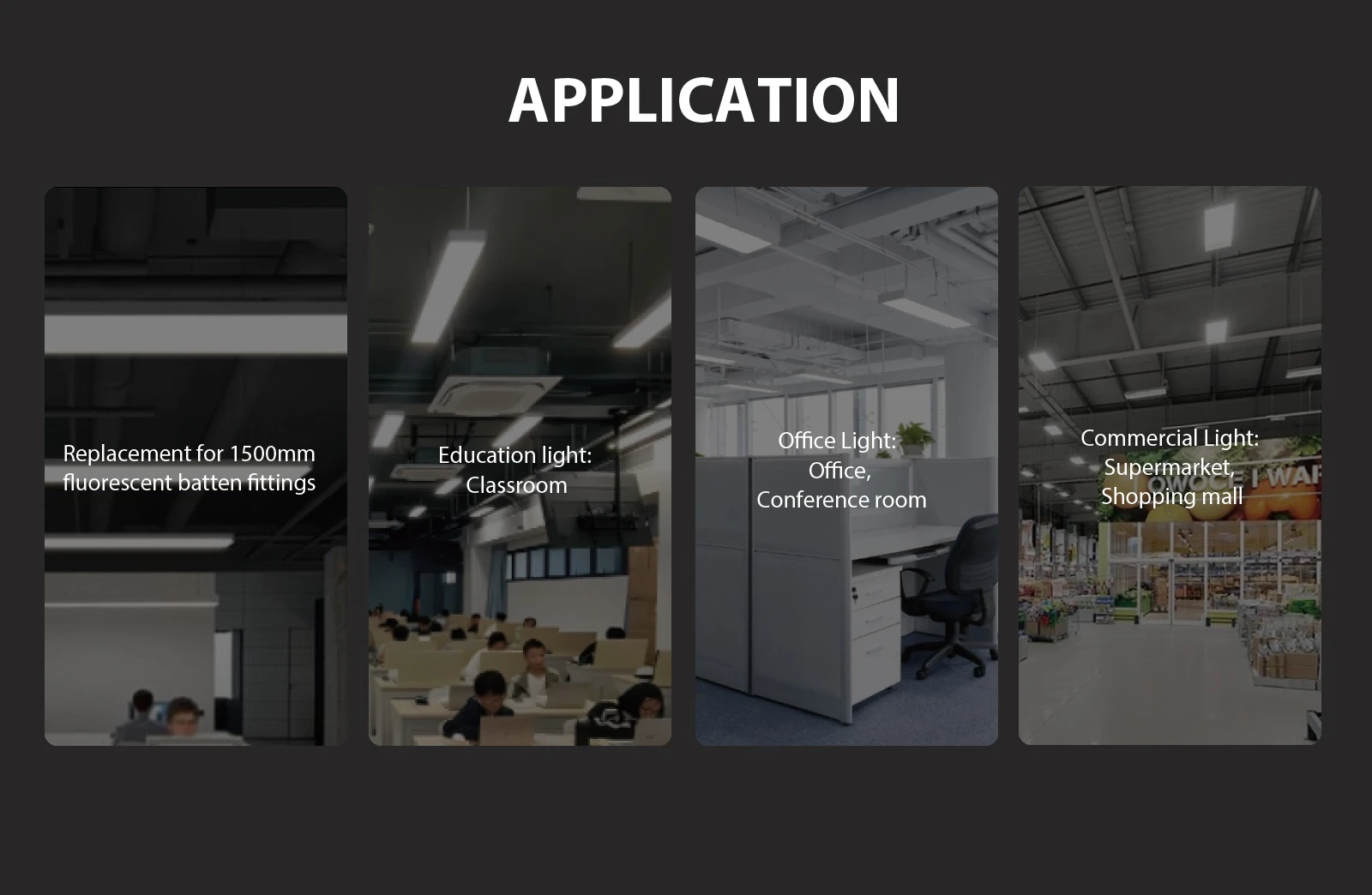

Kinston Batten joffri wisgħat ta '55mm, 80mm u 120mm minn fejn jagħżlu, li jagħmel lill-klijenti aktar interessati f'applikazzjonijiet kummerċjali u ta' l-uffiċċju differenti.

PROPRJETÀ:

Kingston UGR Batten 55mm huwa ddisinjat biex jipprovdi prestazzjoni tad-dawl superjuri filwaqt li jiżgura kumdità viżwali massima. Effiċjenti u eleganti, dan id-dawl ta 'strixxa LED ta' 2ft 4ft 5ft huwa perfett għal firxa wiesgħa ta 'applikazzjonijiet minn uffiċċji korporattivi għal ambjenti tal-bejgħ bl-imnut u settings industrijali. Il-housing tal-aluminju huwa sink tas-sħana eċċellenti u l--teknoloġija għolja SMD2835 jipprovdi żieda fil-produzzjoni tal-lumen.

Kodiċi tal-Ordni	Wisa'	Qawwa Rated	LM/W	Lumen	SDCM/Ra	Watt/CCT Aqleb	Dimensjoni tal-Prodott	GW/CTN	QTY/CTN
BT100-02W-DT1-20F01	55mm	10/20W	tip.130	tip.1300/2600	<3/ Ra80/90	Y	L600xW55xH64	6.0kg	8pcs
BT100-04W-DT1-40F01	55mm	20/40W	tip.130	tip.2600/5200	<3/ Ra80/90	Y	L1200xW55xH64	11.5kg	8pcs
BT100-05W-DT1-50F01	55mm	30/50W	tip.130	tip.3900/6500	<3/ Ra80/90	Y	L1500xW55xH64	14.5kg	8pcs
BT100-06W-DT1-60F01	55mm	30/60W	tip.130	tip.3900/7800	<3/ Ra80/90	Y	L1800xW55xH64	17kg	8pcs
BT110-02W-DT1-20F01	80mm	10/20W	tip.130	tip.1300/2600	<3/ Ra80/90	Y	L600xW80xH64	7.0kg	6pcs
BT110-04W-DT1-40F01	80mm	20/40W	tip.130	tip.2600/5200	<3/ Ra80/90	Y	L1200xW80xH64	12.0kg	6pcs
BT110-05W-DT1-50F01	80mm	30/50W	tip.130	tip.3900/6500	<3/ Ra80/90	Y	L1500xW80xH64	14.0kg	6pcs
BT110-06W-DT1-60F01	80mm	30/60W	tip.130	tip.3900/7800	<3/ Ra80/90	Y	L1800xW80xH64	18.0kg	6pcs
BT120-02W-DT1-20F01	120mm	10/20W	tip.130	tip.1300/2600	<3/ Ra80/90	Y	L600xW120xH64	7.0kg	4pcs
BT120-04W-DT1-40F01	120mm	20/40W	tip.130	tip.2600/5200	<3/ Ra80/90	Y	L1200xW120xH64	10.5kg	4pcs
BT120-05W-DT1-50F01	120mm	30/50W	tip.130	tip.3900/6500	<3/ Ra80/90	Y	L1500xW120xH64	13.0kg	4pcs
BT120-06W-DT1-60F01	120mm	30/60W	tip.130	tip.3900/7800	<3/ Ra80/90	Y	L1800xW120xH64	15.5kg	4pcs

Kingston01

Kingston02

Kingston03

Kingston04

Kingston05

Kingston06
